Download our free Simarine Mobile App and connect it to Pico to monitor live data for batteries, tanks, temperatures, barograph, consumption of small appliances, and auxiliary generators.
Use it to configure your Pico and upgrade its firmware.
Simarine pico battery monitor
PICO modular monitoring system for vessels, campervans, motorhomes, and RVs
Pico Battery Moniter
Contact Sales →Good things always come in combo
To make it easy for you to choose.
PICO ONE
Entry-level battery monitoring for smaller boats and campervans.
-
Pico display unit
-
SC303 shunt module
PICO STANDARD
Basic set for motor and sailing boats.
-
Pico display unit
-
ST107 tank module
-
SC303 shunt module
Most Popular
PICO BLUE SET
Monitoring solar & alternative power sources, appliance consumption.
-
Pico display unit
-
ST107 tank module
-
SCQ25 quadro shunt module
-
SC503 shunt module

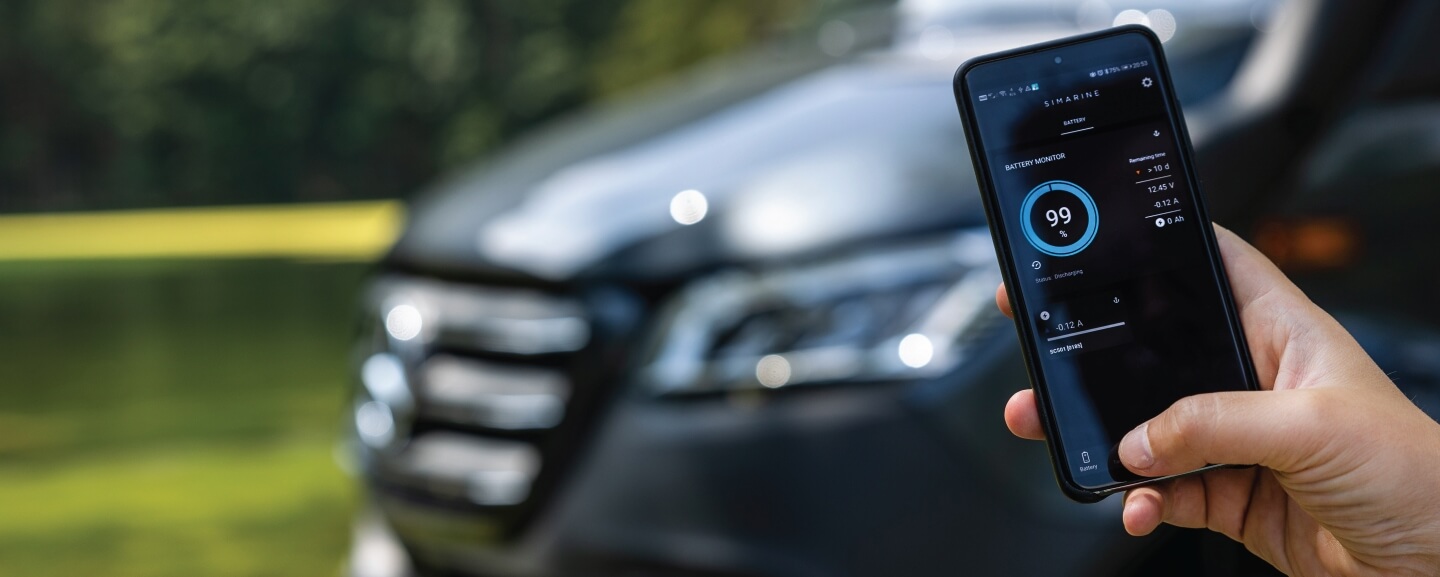

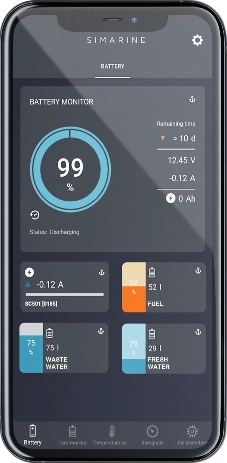

Access data and manage settings via the Simarine app
Voltage, current, or time remaining? PICO has all the answers.
The Pico battery monitor displays all data about your batteries’ voltage, state of charge, remaining ampere hours, time to charge or discharge, and even temperature.
You can monitor up to 6 battery banks.
The Pico system is modular, which means that you need expansion modules in addition to the PICO monitor.
For battery monitoring you need the shunt SC303 or SC503.
NEW!

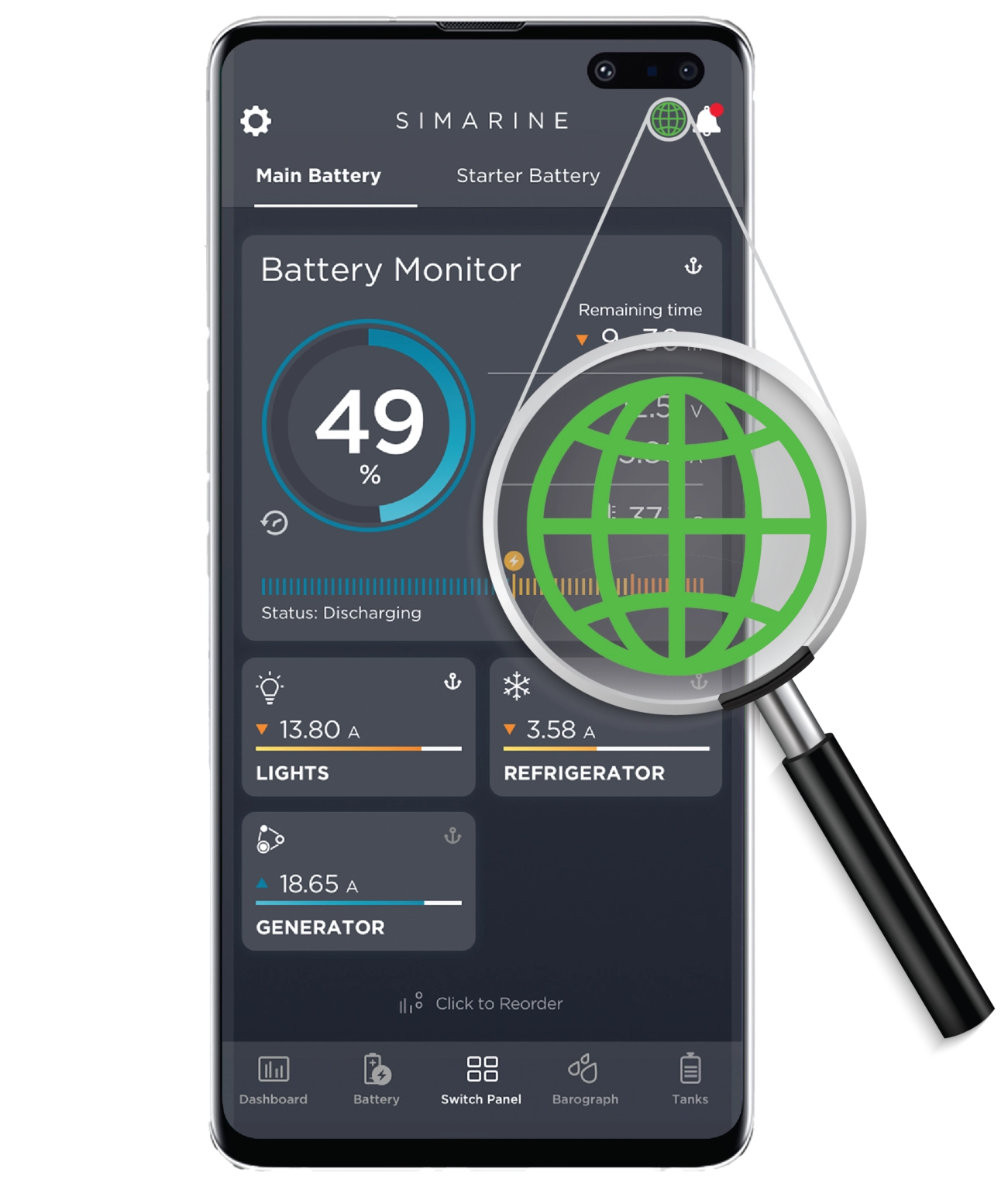

Check your batteries while at home
Connect your Pico to the internet via your router, marina, or camp WiFi router to check your batteries, tank levels, temperatures, and other measurements from anywhere.
Now you have immediate access to real-time information – all accessible through our app, which also grants you control over Pico’s settings.

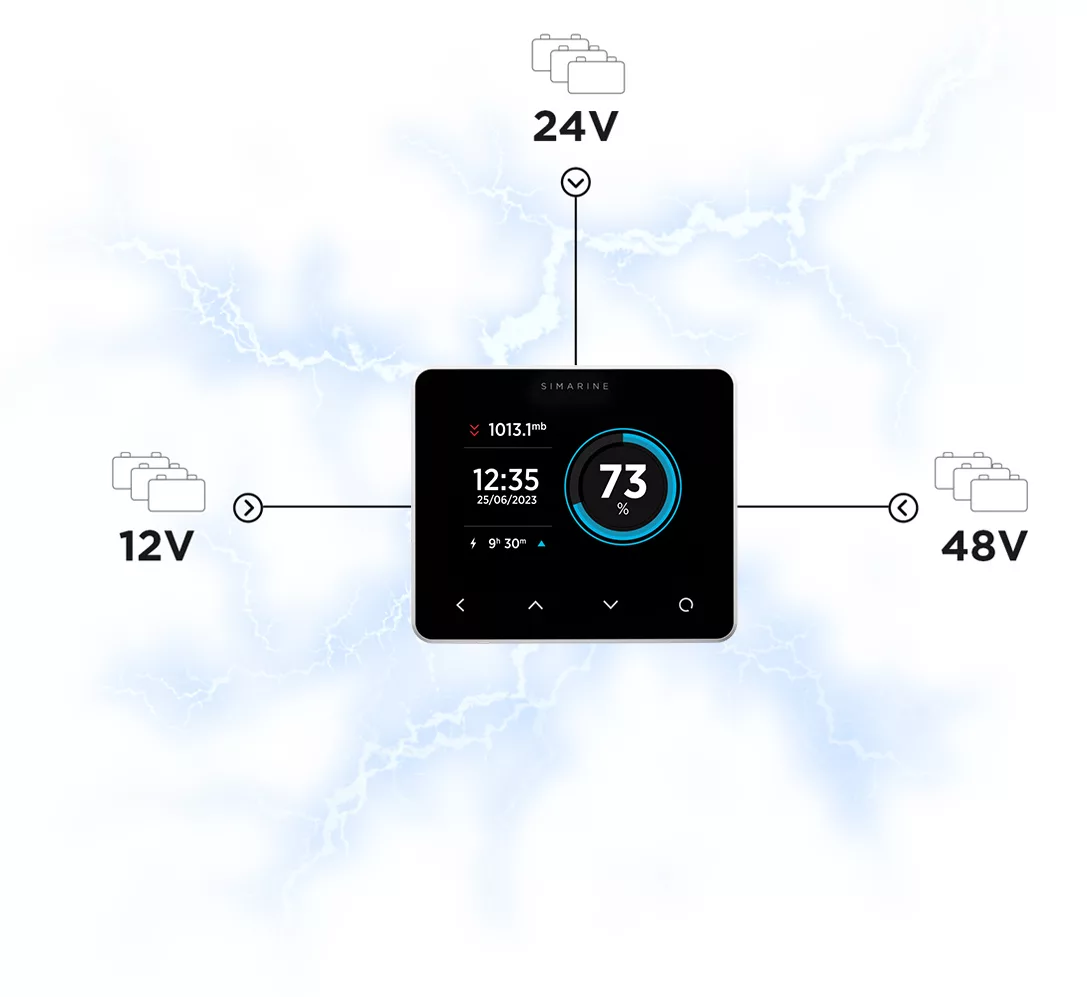

Monitor multi-voltage systems with one PICO
With Pico you can monitor several voltage systems. All with a single device.
For monitoring 12V and 24V systems you can use the standard splitter that comes with Pico.
For systems that exclusively operate on 48V you need a high-voltage splitter.
Lead Acid & Lithium battery compatible
Our battery monitoring system is compatible with the following battery types:
- LiFePO4
- AGM
- GEL
- Deep Cycle
- Wet Free
- Wet Low

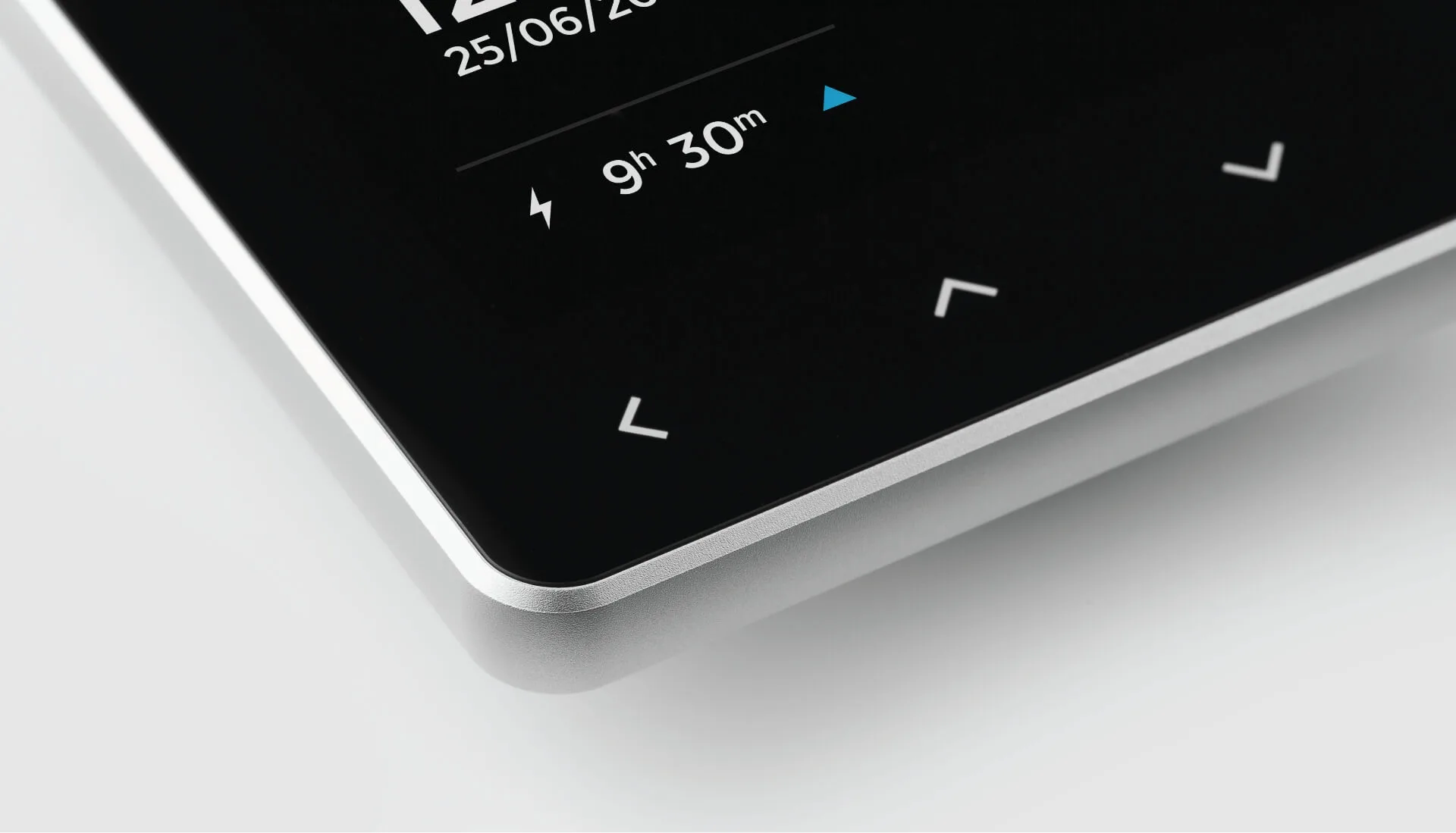

CNC milled from a single piece of anodised aluminum

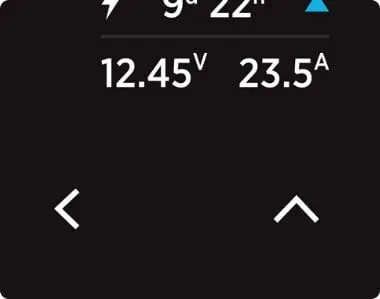

Water-tolerant touch buttons

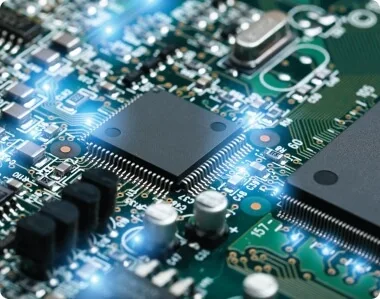

Low power consumption
Love at first sight that lasts forever
Pico has a design you’ll fall in love with over and over again. It’s sleek, slim, and compact look is available in 2 mount types and 2 colors (black and silver).
Its display is optically bonded. It features a high-resolution, 3.5” IPS screen with Gorilla® Glass, a polarizing filter, and automatic illumination.
The IP67-rated anodized aluminum unibody case is water- and dust-resistant. The CapSense® touch buttons can be used even when there are drops of water on them.
Manage your power to enjoy freedom
When off-grid you rely completely on your own energy sources. Batteries don’t last forever, so solar is a necessity in this case. But still… you need to know what’s draining your batteries the most. Is it your fridge, stove, or something else?

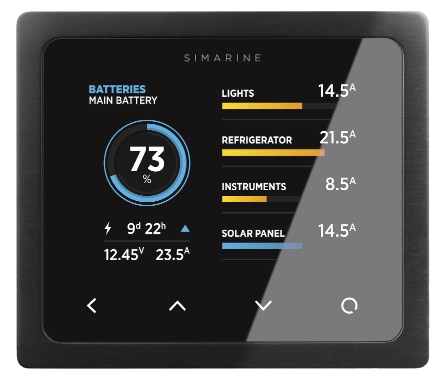

Adding the innovative SCQ25, SCQ25T, or SCQ50 module to your system lets you monitor the power consumption of all your appliances, such as your refrigerator, lights, cooktop, coffee maker, etc. Monitor various generators, like solar.
Monitoring the current coming in and out also serves as a check to make sure everything is working properly.

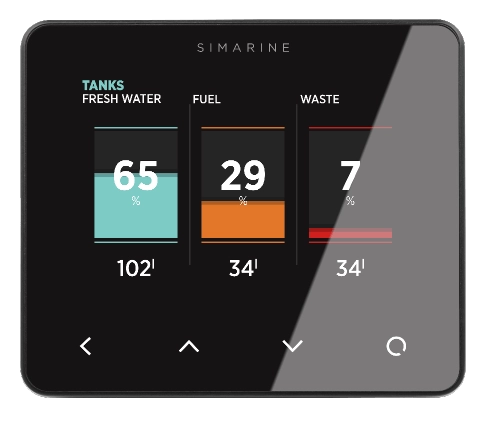

Is your water tank half full
or half empty?
Always be sure of how much water you have left to cook, shower, or make your favorite tea with while admiring the beauty of nature or thinking about how little we need to be happy.
With the Pico battery monitoring system, you can monitor up to 12 tanks. Simply add a tank level and voltage module ST107 to the system and set two calibration points. For irregular tank shapes, you can set several of them to measure as accurately as possible.
Wide range of third-party analog sensors and units supported: resistive 0–65K ohms (or anything in between) and voltage type 0–75V (or anything in between).
Yours is around 36.6, but you know that already

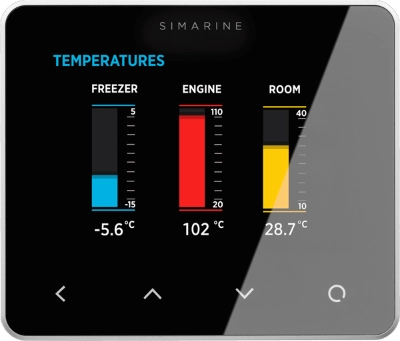

What you don’t know is the temperature inside and outside your boat or campervan, the temperature of your batteries, your fridge, and your engine, etc.
Add up to 12 temperature sensors to the system with various shunts and modules: SC303, SC503, SCQ25T and/or ST107.
Pico is compatible with NTC 10k, NTC 5k and NTC 1k sensors.

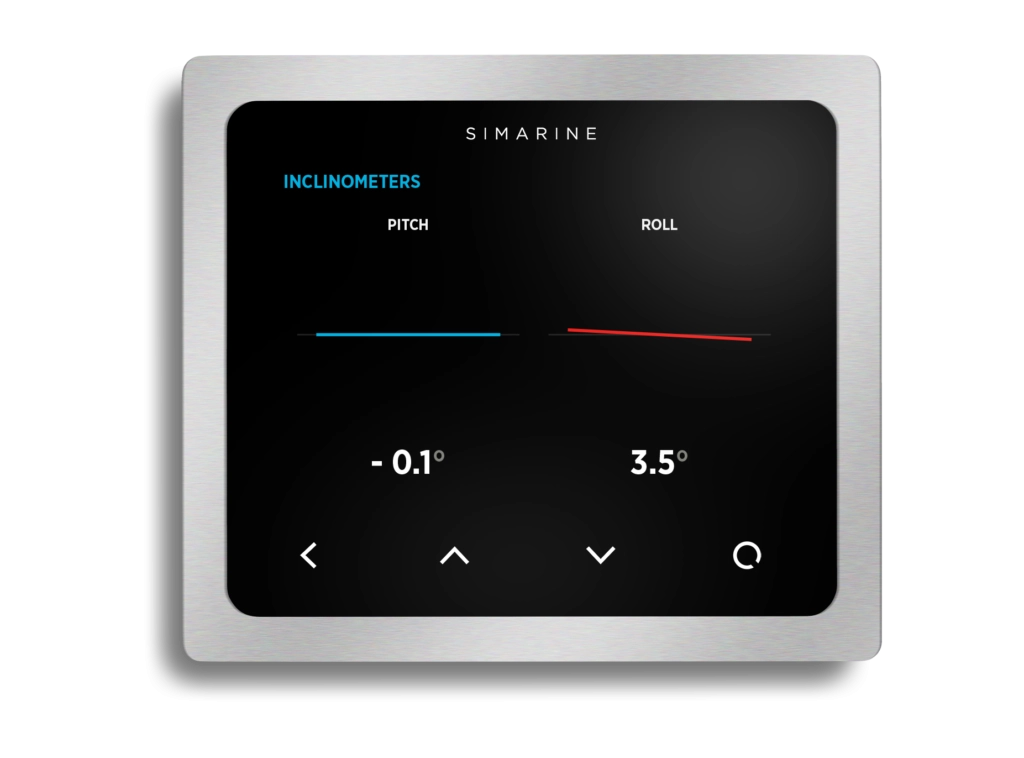

Pitch and roll monitoring
The innovative inclinometer helps you monitor your vehicle’s pitch and roll and helps you evenly distribute weight loads on a boat.
Hey, it's time to move on. Bad weather is coming.

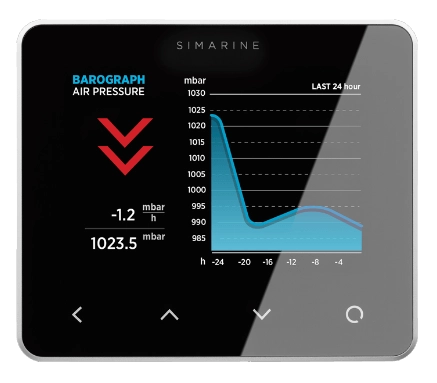

Pico battery monitor has a built-in barograph that displays the pressure in real time, detects changes, and, by storing the data, shows trends that can be invaluable in predicting weather changes.

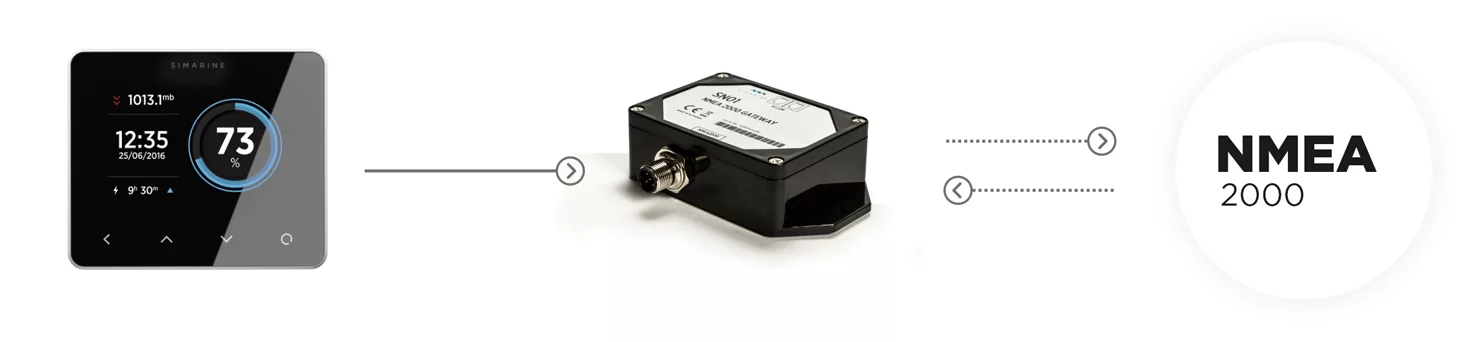

Get all data on your NMEA compatible device
The NMEA 2000 gateway allows Pico to communicate with other devices on the NMEA network.
Pico sends data about batteries, tanks, temperatures, barographs, and more to other devices.
Wiring

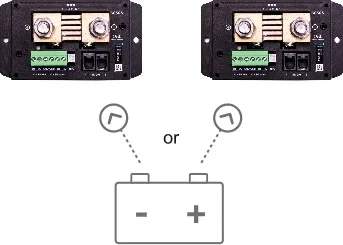

Wire shunts either to the LOW (-) or HIGH side (+), unless the voltage of the system exceeds 35V. In this case, the shunt must be wired to the LOW(-) side.
Convenient for wiring on retrofitting for existing boats and campervans. Multiple shunts and modules can be daisy-chained.
Save & restore feature for manufacturers
Pico settings can be stored and easily transferred to the next Pico setup with the same configuration. All done easily via the Simarine app.
What's in the box?
Pico monitor
Splitter
Installation template & quick guide
Screws, threaded rods, nuts, brackets
Double sided tape
Want to learn the basics about the Pico battery monitoring system? Need help with choosing the right shunts and modules? In the video below we take you through the foundation. For more videos like this visit our YouTube channel .
Techtalk
PICO
Operating
Power source voltage range: 6 - 35 VDC
Temperature range: -20°C to 70°C (-4°F to 158°F)
Power Consumption at 12V
- WiFi On, 100% illumination: 90 mA
- WiFi Off, 70% illumination: 35 mA
- WiFi Off, 0% illumination: 18 mA
- Power Off, logger active: 5 mA
Display Capabilities
- Current: -999.99 to +999.99 A (0.01 A resolution)
- Voltage: 0 - 75 VDC (0.001 V resolution)
- Amp Hours: ±0.1 Ah
- Temperature: -40°C to +150°C (0.1°C/°F resolution)
- SOC (State of Charge): 0 - 100%
WiFi
Radio Frequency Band: 2.4 GHz
Monitoring Capabilities
- Batteries: 6
- Shunts: 24
- Temperature Sensors: 10
- Tank Level Sensors: 14
- Inclinometer Sensors: 2
Dimensions (without connector)
- PICO Standalone: 98 x 84 x 10 mm (3.85 x 3.30 x 0.39 in)
- PICO Panel-mount: 108.5 x 94 x 10 mm (4.27 x 3.70 x 0.39 in)
