A true innovation on the market! Quadro low-amp shunt modules are here for appliance monitoring.

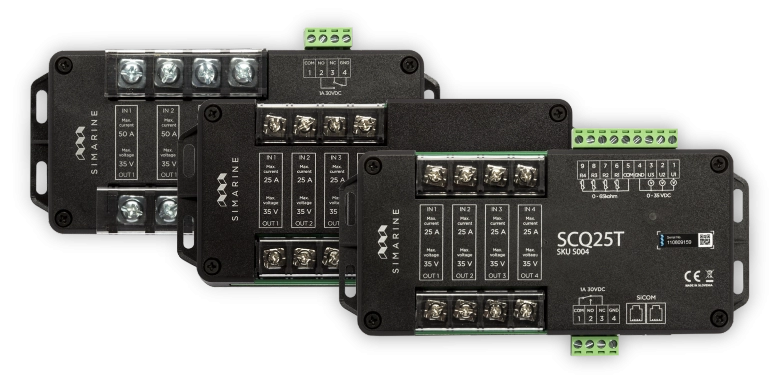

Quadro shunt modules SCQ25, SCQ25T and SCQ50
Contact Sales →
WHAT'S IN THE BOX?
Quadro shunt SCQ25, SCQ50 or SCQ25T
5 m data cable
Screws
Warranty
With them you can monitor the current flow of the 4 individual appliances. The SCQ25 allows a maximum continuous current of 25 amps per channel and the SCQ50 allows a maximum continuous current of 50 amps per channel.
If you need more than 25 amps per channel, you can wire the
appliance in parallel across two channels and configure this
setting in PICO to monitor these two channels as a single
device, thus doubling the continuous current limit (2×25 =
50A).
What about the SCQ25T module? This is an
innovative combination of SCQ25 and ST107 tank level and voltage
module. It combines the functionalities of both
modules.
SC303: 300A continuous current
SC503: 500A continuous current
Connection possibilities:
- 4 appliances (consumers and/or generators)
- 1 alarm signal relay
The alarm signal relay’s voltage limit is 60V and the
current limit is 1A.

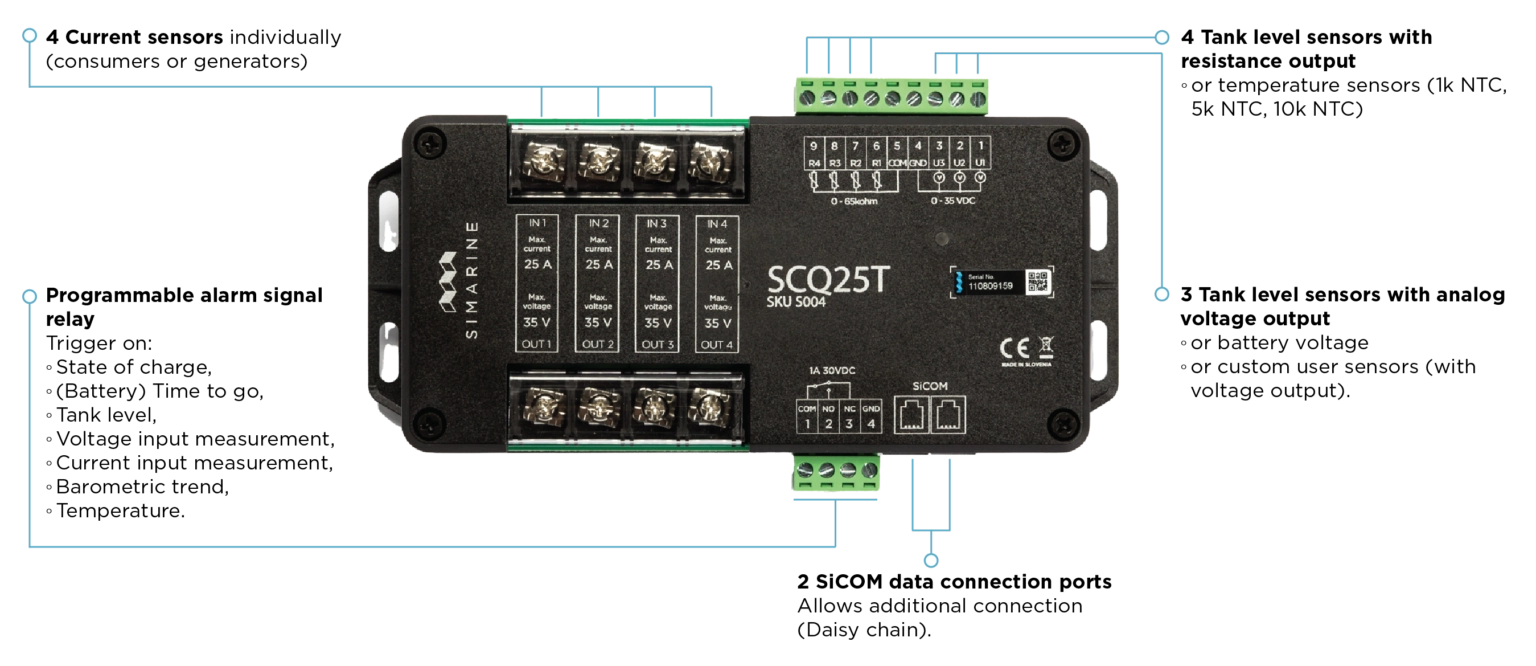

HOW TO CONNECT

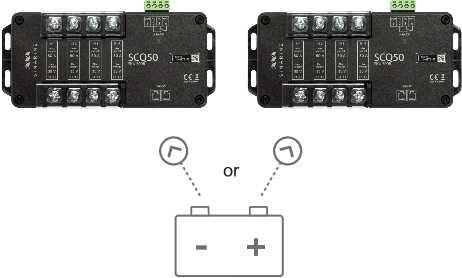

WIRING OPTIONS
You can wire the shunts to either the LOW (-) or HIGH side (+), unless the system’s voltage exceeds 35V. In this case, wiring the shunt to the LOW(-) side is mandatory.
You can also mix the shunt wirings, by connecting some to the positive and some to the negative side, or even to the same module.
Convenient for wiring on retrofitting for existing boats and campervans.
Multiple shunts can be daisy-chained together or linked to our other expansion modules.
