N2K Gateway
Contact Sales →
WHAT'S IN THE BOX?
NK2 gateway
5 m data cable
Screws
Warranty

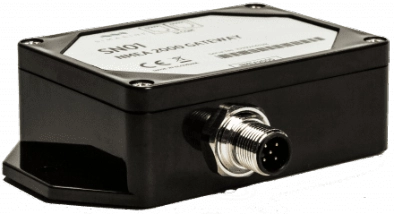

The SN01 N2K gateway allows your PICO to transmit data to other devices on the NMEA network.
PICO sends data about batteries, tanks, temperatures, air pressure, and more to other devices.
List of supported N2K PGN
Below is a list of supported N2K PGNs. PICO allows transmitting or receiving of certain PGNs according to the table below.
| PGN | PGN Name | Receiving | Transmitting |
|---|---|---|---|
| 59904 | ISO Request | Yes | No |
| 60928 | ISO Address Claim | Yes | Yes |
| 126996 | Product Information | No | Yes |
| 127257 | Attitude | No | Yes |
| 127502 | Switch Bank Control | No | Yes |
| 127505 | Fluid Level | No | Yes |
| 127506 | DC Detailed Status | No | Yes |
| 127508 | Battery Status | No | Yes |
| 130310 | Environmental Parameters | No | Yes |
| 130314 | Actual Pressure | No | Yes |
Techtalk
Voltage range: 6 - 35 VDC
Temperature range: From -20°C to 70°C (-4°F
to 158°F)
Power consumption @12V: 0.6 mA
Dimensions (mm): 111.80 x 77.52 x 32.11
Dimensions (in): 4.40 x 3.05 x 1.26
N2K backbone: 1
Connectivity: SiCOM
