Nomia series Super B Nomia 12V210Ah LiFePO4 battery

Nomia 12V210Ah — High-Capacity LiFePO4 Battery

Robust energy storage with state-of-the-art technology and smart software. Large capacity in a compact, maintenance-free form factor — ideal for marine and industrial systems.

12.8V nominal 210Ah / 2688Wh >3500 cycles (100% DoD) IP50 RINA type approval
Downloads

Gallery

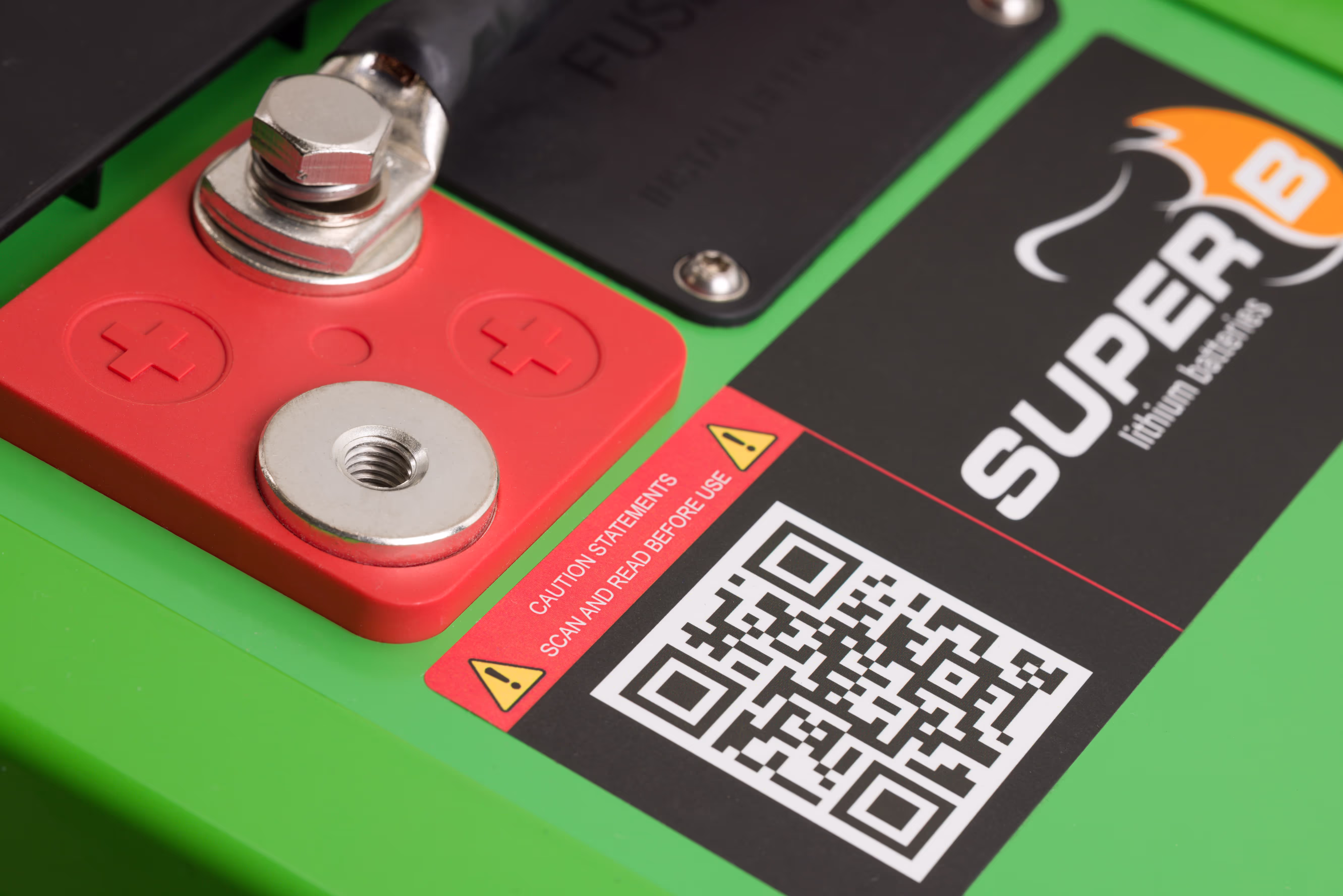

Nomia 12V210Ah 45° Nomia 12V210Ah 0° Nomia 12V210Ah 90° Nomia 12V210Ah angled Nomia 12V210Ah detail 1 Nomia 12V210Ah detail 2

Specifications

Electrical

  • Nominal capacity: 210Ah
  • Energy: 2688 Wh
  • Open circuit voltage: 13.2V
  • Self-discharge: <3% per month
  • Cycle life: >3500 cycles (at 1C charge/discharge, 100% DoD)
  • Voltage: 12V

Charge & Discharge

  • Charge method: CCCV
  • Charge voltage: 14.3–14.6V
  • Max charge current: 200A
  • End of discharge voltage: 10V
  • Continuous discharge current: 200A
  • Pulse discharge current: 600A (30 s)

Mechanical

  • Dimensions (L×W×H): 417 × 227 × 314 mm
  • Weight: 23 kg
  • Case material: GFRP
  • Ingress protection: IP50
  • Cell type / chemistry: Prismatic — LiFePO4

Temperature

  • Charge: 0°C to 55°C
  • Discharge: −20°C to 55°C
  • Storage: −20°C to 45°C

Compliance & General

  • Certifications: CE, FCC, UN 38.3, UN ECE R10.06, UL 1642 (Cells), EN/IEC 62619-62620 (ES-TRIN), RINA Type Approval
  • Shipping classification: UN 3480
  • EAN-13: 8718531361645
  • Battery designation: IFpP/36/130/195/[2P4S]M/−20+55/95
