Nomada series Super B Nomada 12V105Ah-LT LiFePO4 modular battery

Nomada 12V105Ah-LT — Low-Temperature LiFePO4 Battery

Advanced modular lithium battery with integrated BMS and smart heating for cold-climate charging. Compact, lightweight and scalable for marine, off-highway and energy-storage applications.

12.8V nominal 105Ah / 1344Wh Open circuit 13.2V Modular & stackable IP66
Downloads

Gallery

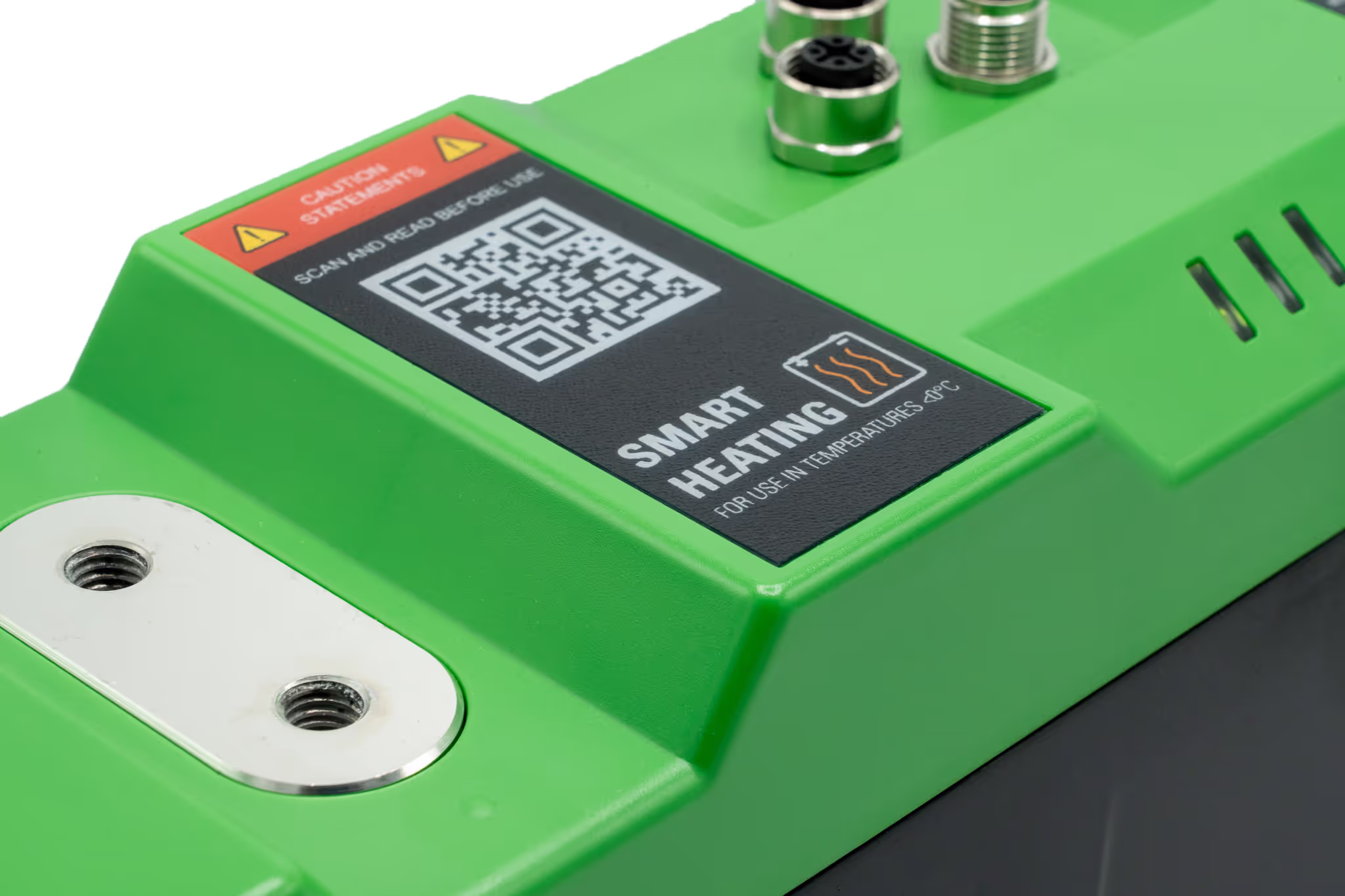

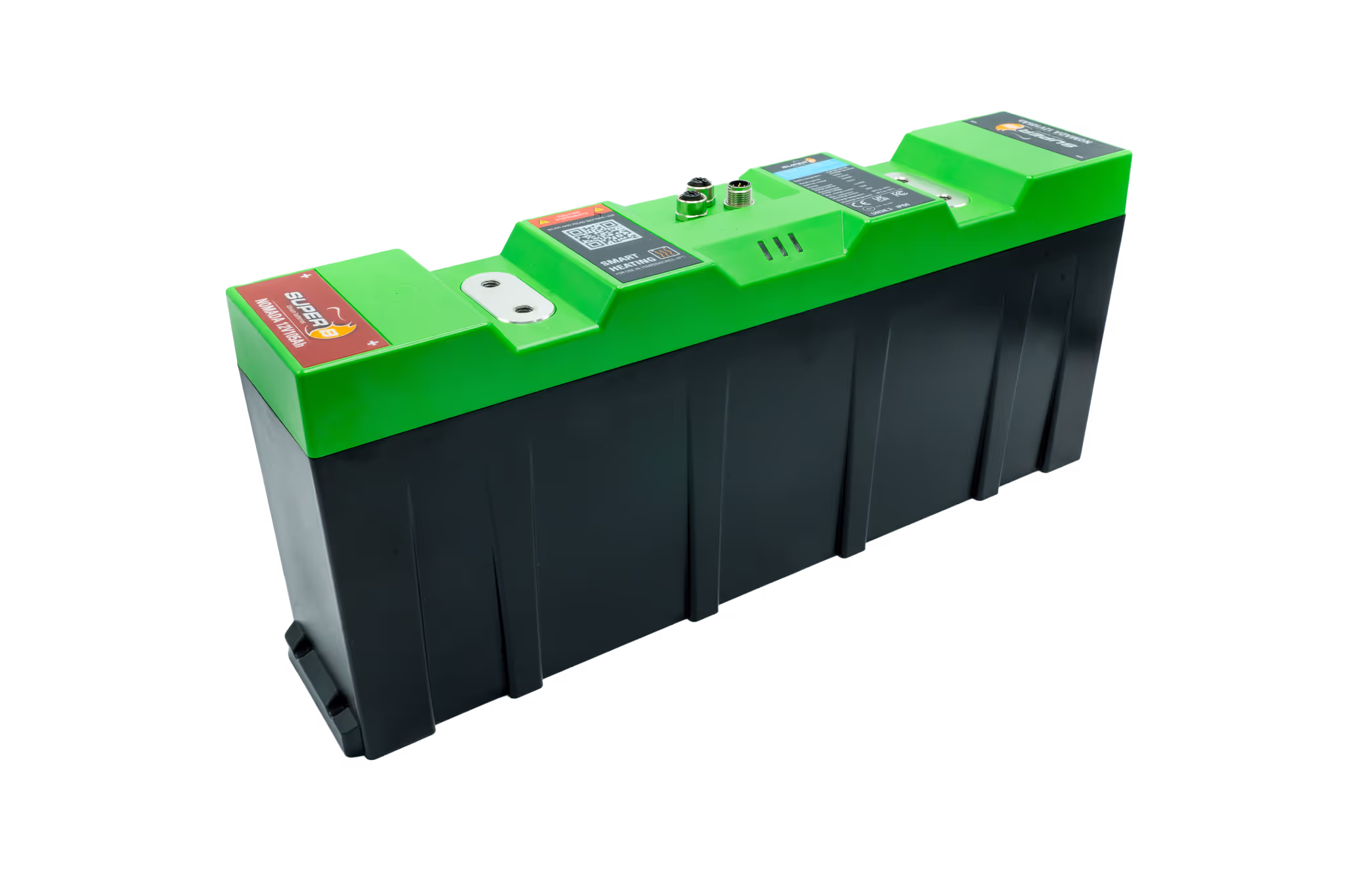

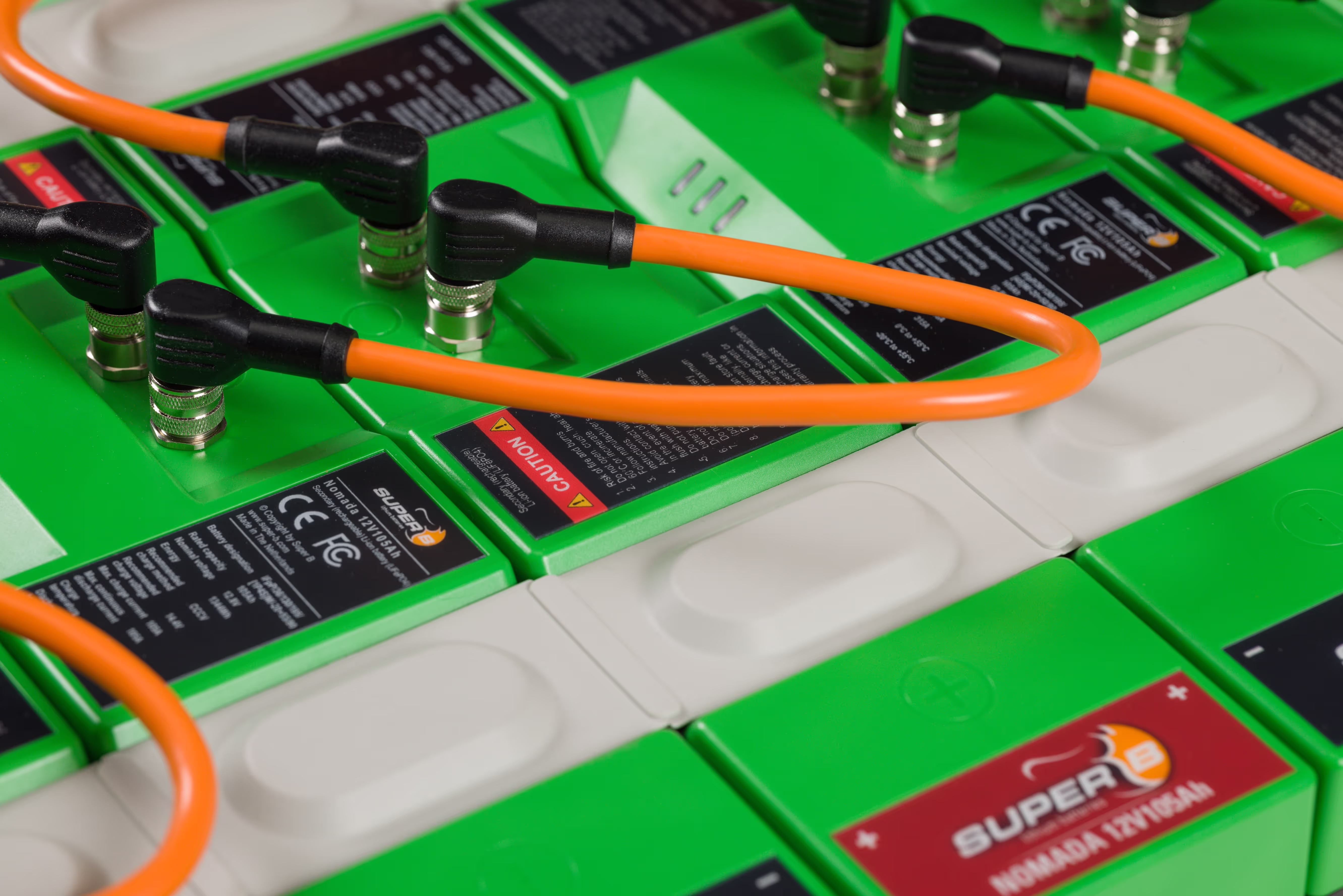

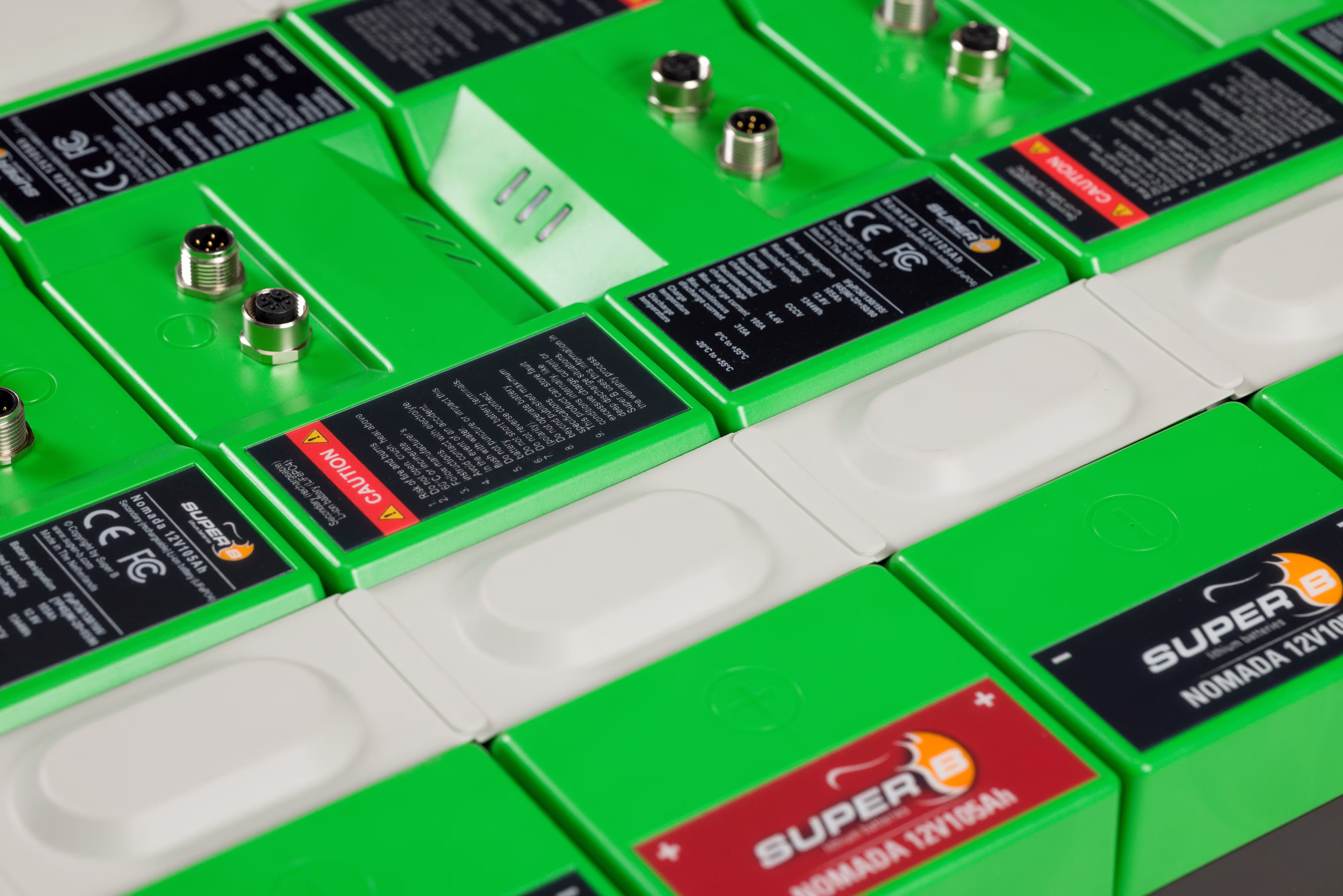

Nomada 12V105Ah-LT hero Nomada 12V105Ah-LT front 0° Nomada 12V105Ah-LT front 90° Nomada 12V105Ah-LT angle 90°

Specifications

Electrical

  • Nominal capacity: 105Ah
  • Energy: 1344 Wh
  • Nominal voltage: 12.8V
  • Open circuit voltage: 13.2V
  • Self-discharge: <3% per month

Charge & Discharge

  • Charge method: CCCV
  • Charge voltage: 14.3–14.6V
  • Max charge current: 105A
  • End of discharge voltage: 10V
  • Continuous discharge current: 105A
  • Pulse discharge current: 315A

Mechanical

  • Dimensions (L×W×H): 437 × 90 × 175 mm (17.2” × 3.5” × 6.9”)
  • Weight: 10 kg
  • Case material: PC/ABS (UL94-V0)
  • Ingress protection: IP66
  • Cell type / chemistry: Prismatic — LiFePO4

Environment

  • Charge: 0°C to 55°C (smart heating for cold conditions)
  • Discharge: −20°C to 55°C
  • Storage: −20°C to 45°C
