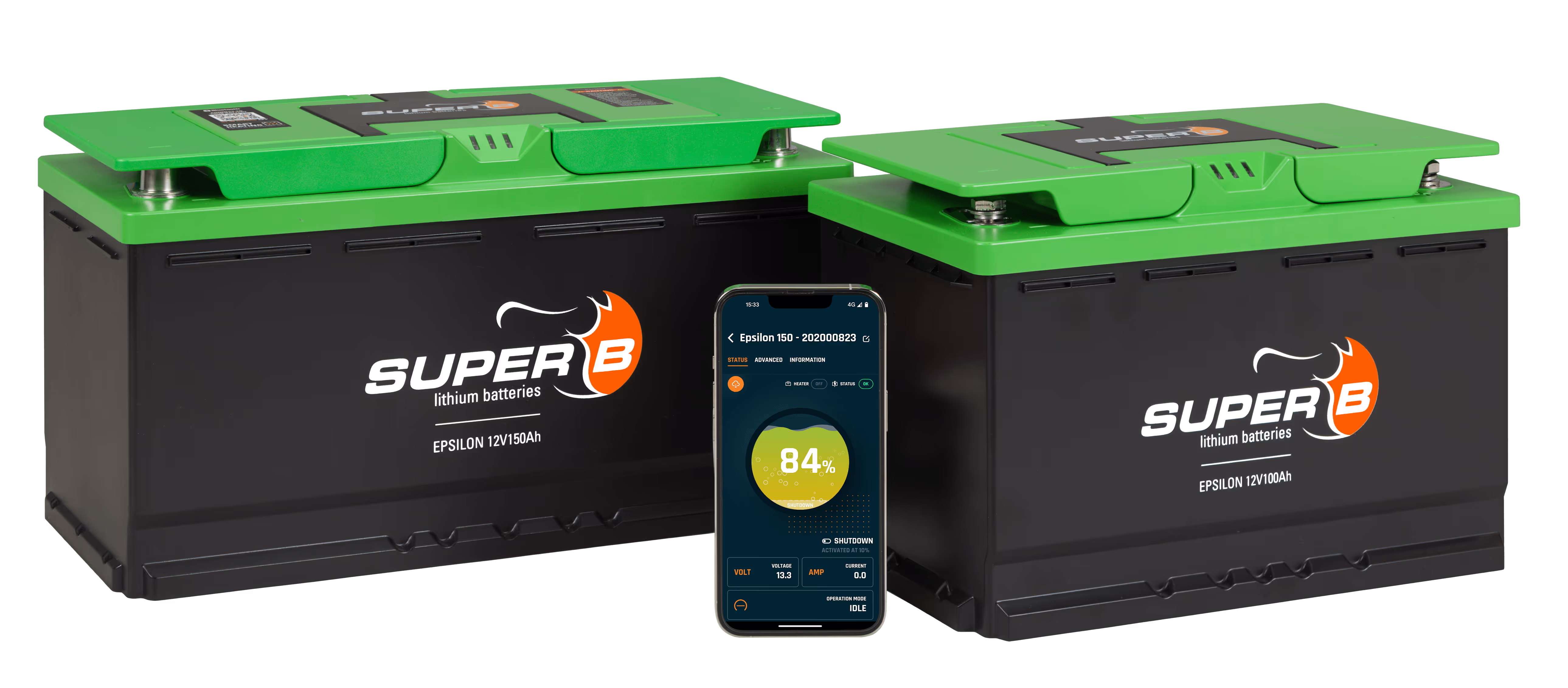

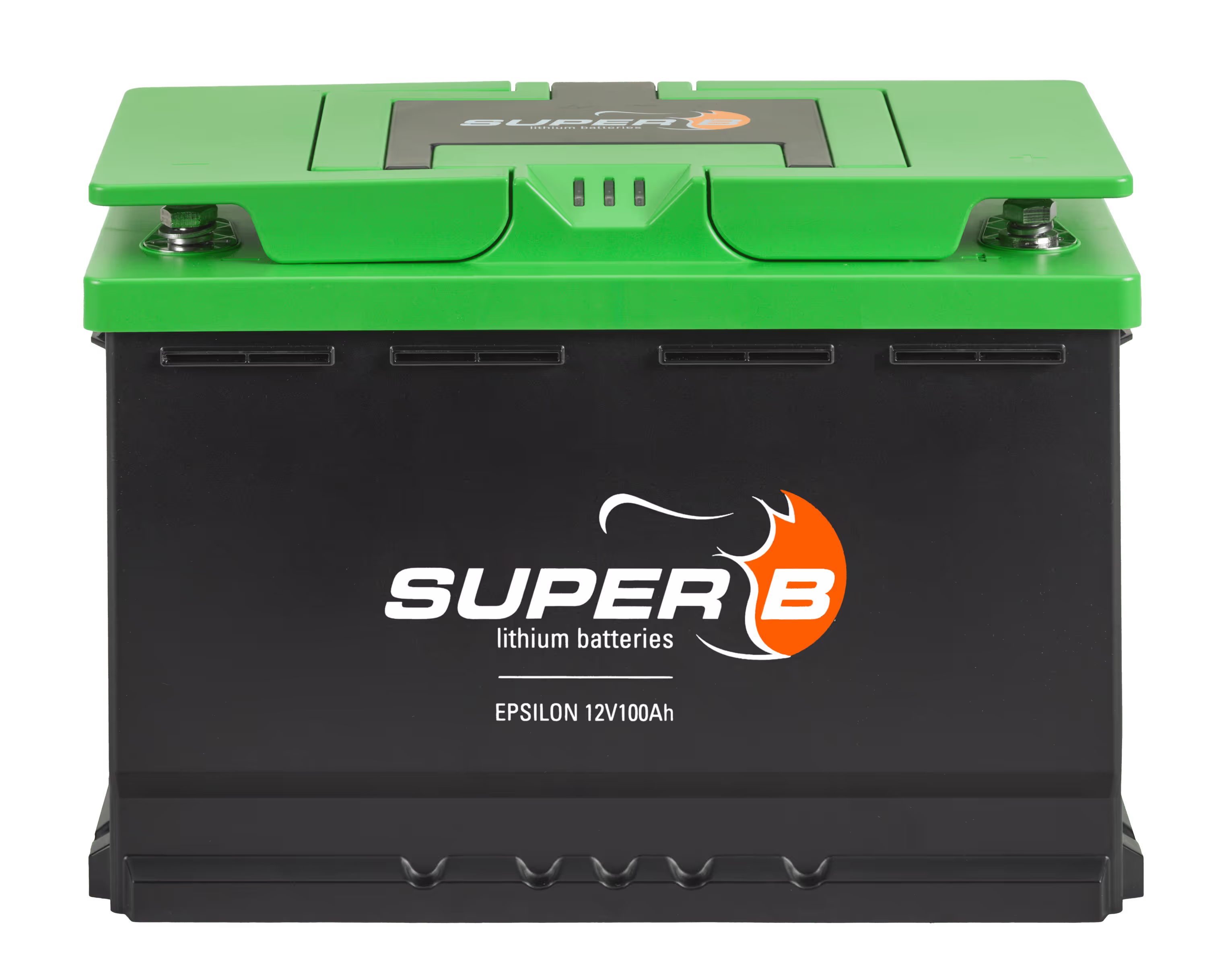

Epsilon 12V100Ah — LiFePO₄ Smart Battery

Electrical

• Nominal capacity: 100Ah
• Energy: 1280 Wh
• Open circuit voltage: 13.2V
• Self-discharge: <3% per month
• Cycle life: >5000 cycles (at 100% DoD)
• Voltage: 12V

Charge & Discharge

• Charge method: CCCV
• Charge voltage: 14.3–14.6V
• Max charge current: 90A
• End of discharge voltage: 8V
• Continuous discharge current: 190A
• Pulse discharge current: 300A

Mechanical

• Dimensions (L×W×H): 278 × 175 × 190 mm (DIN H6 / LN3)
• Weight: 10.7 kg
• Case material: PC/ABS
• Ingress protection: IP56
• Cell type / chemistry: Prismatic — LiFePO₄

Temperature

• Charge: −30°C to 45°C
• Discharge: −20°C to 60°C
• Storage: −20°C to 45°C

Compliance & General

• Certifications: CE, FCC, UKCA, RED, RoHS, UN 38.3, UN ECE R10.06, UL 1642 (Cells)
• Shipping classification: UN 3480
• EAN-13: 8718531362208
• Battery designation: lFpP/27/148/135[3p4s] M/−20+60/95
