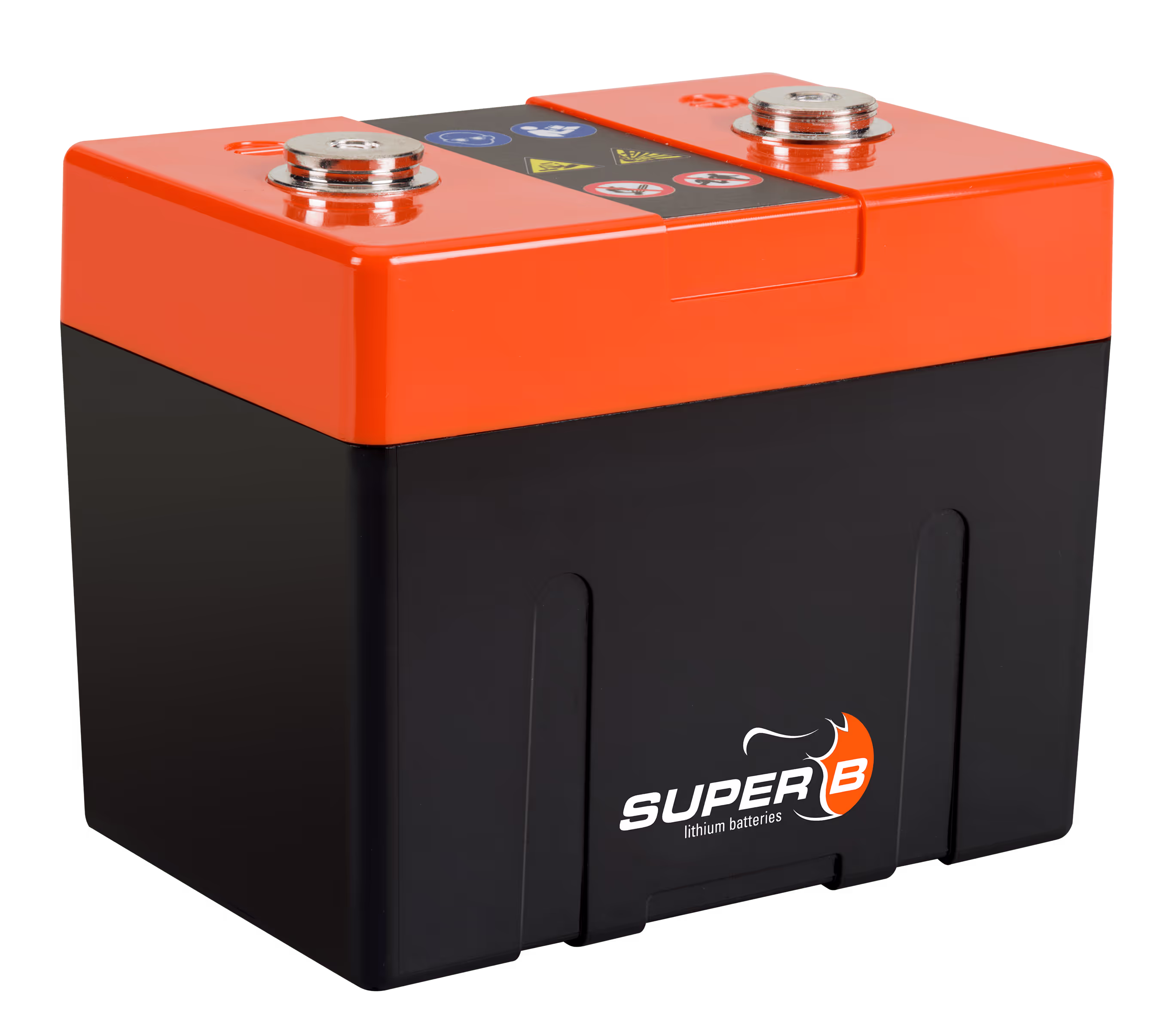

Andrena 12V7.5Ah — Ultralight LiFePO₄ Starter
Lightweight, high-performance and reliable lithium starter battery for motorsports. Equals a 12–20Ah lead-acid battery (when alternator ≤ 27A). Designed in a standard rally casing for 12V systems and built to perform in extreme environments.
12.8V nominal
7.5Ah / 96Wh
>1000 cycles (10C, 100% DoD)
IP69
EqPb 12–20Ah
Nominal capacity
7.5Ah
Nominal voltage
12.8V
Dimensions (L×W×H)
120 × 82 × 98 mm / 4.72” × 3.23” × 3.86”
Open circuit voltage
13.2V
Gallery
Specifications
Electrical
- Nominal capacity: 7.5Ah
- Energy: 96 Wh
- Open circuit voltage: 13.2V
- Self-discharge: <3% per month
- Cycle life: >1000 (at 10C discharge, 100% DoD)
- EqPb (lead-acid equivalent): 12–20Ah
- Voltage: 12V
Charge & Discharge
- Charge method: CCCV
- Charge voltage: 14.3–14.6V
- Max. charge current: 27A
- End of discharge voltage: 8V
- Discharge current (continuous): 120A
- Discharge pulse current: 375A (50C) for 1s
Mechanical
- Dimensions (L×W×H): 120 × 82 × 98 mm (4.72” × 3.23” × 3.86”)
- Weight: 1.3 kg (3.0 lbs)
- Case material: PC-ABS
- Ingress protection: IP69
- Cell type / chemistry: Cylindrical — LiFePO₄
Temperature
- Charge: 0°C to 55°C (32°F to 131°F)
- Discharge: −30°C to 55°C (−22°F to 131°F)
- Storage: −40°C to 60°C (−40°F to 140°F)
Compliance & General
- Certifications: CE, UN 38.3, UL 1642 (Cells)
- Shipping classification: UN 3480
- EAN-13: 8718531360020
- Battery designation: 4IFpR27/66-3
