Andrena — Starter

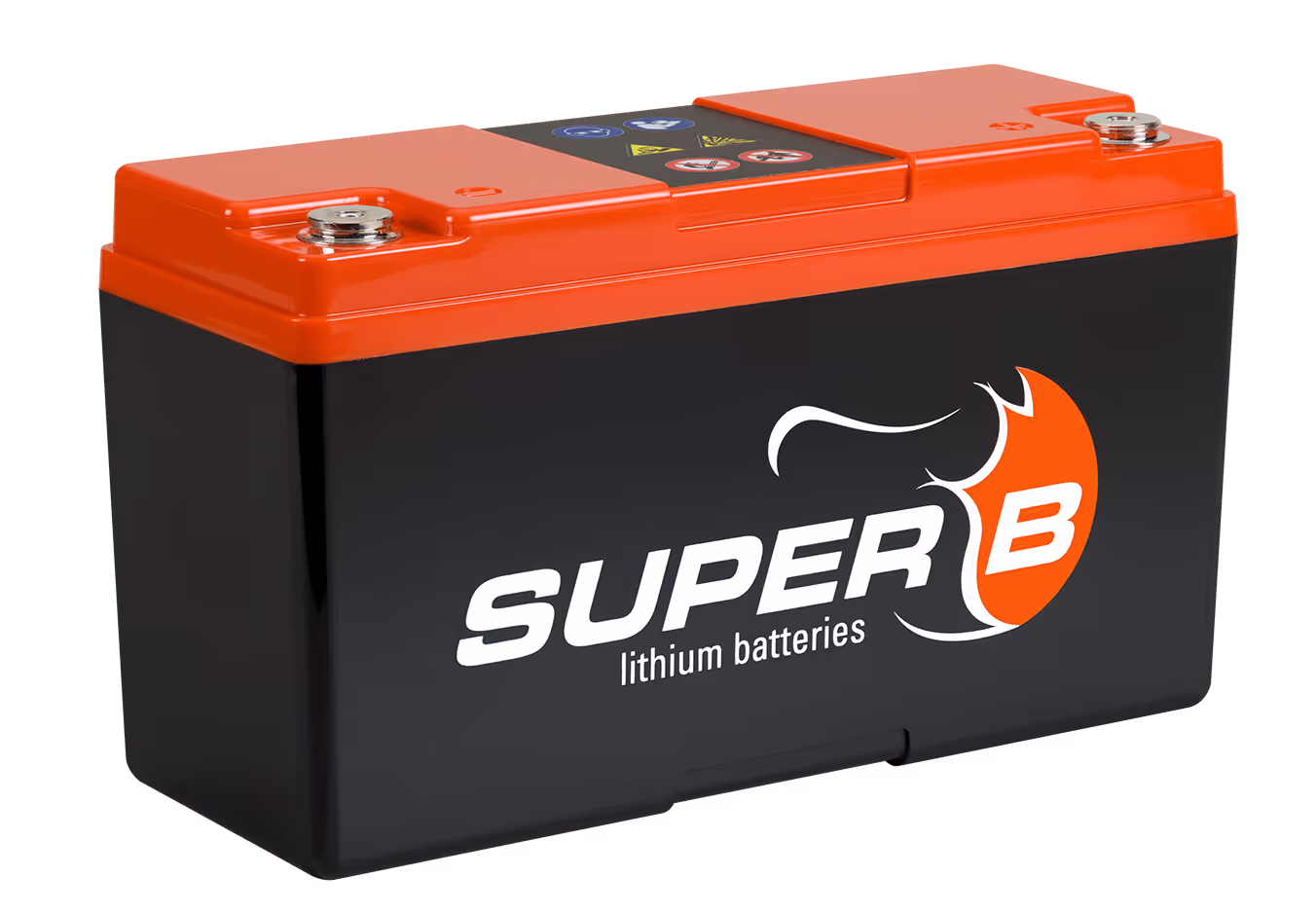

Andrena 12V25Ah — LiFePO₄ Starter Battery
Lightweight, high-performance, safe and reliable lithium starter battery developed for motorsports. With LiFePO₄ chemistry and an integrated BMS in a standard rally casing, Andrena thrives in extreme environments. Lead-acid equivalent 100–130Ah when the alternator’s max current does not exceed the battery’s 77A max charge current.
12.8V nominal
25Ah / 320Wh
>1000 cycles (10C, 100% DoD)
IP69
EqPb 100–130Ah
4.3 kg
Nominal capacity
25Ah
Nominal voltage
12.8V
Dimensions (L×W×H)
249 × 96 × 141 mm / 9.80” × 3.78” × 5.55”
Open circuit voltage
13.2V
Gallery
Specifications
Electrical
- Nominal capacity: 25Ah
- Energy: 320 Wh
- Open circuit voltage: 13.2V
- Self-discharge: <3% per month
- Cycle life: >1000 (at 10C discharge, 100% DoD)
- EqPb (lead-acid equivalent): 100–130Ah
- Voltage: 12V
Charge & Discharge
- Charge method: CCCV
- Charge voltage: 14.3–14.6V
- Max. charge current: 77A
- End of discharge voltage: 8V
- Discharge current (continuous): 385A
- Discharge pulse current: 1045A (42C) for 1s
Mechanical
- Dimensions (L×W×H): 249 × 96 × 141 mm (9.80” × 3.78” × 5.55”)
- Weight: 4.3 kg (9.5 lbs)
- Case material: PC-ABS
- Ingress protection: IP69
- Cell type / chemistry: Cylindrical — LiFePO₄
Temperature
- Charge: 0°C to 55°C (32°F to 131°F)
- Discharge: −30°C to 55°C (−22°F to 131°F)
- Storage: −40°C to 60°C (−40°F to 140°F)
Compliance & General
- Certifications: CE, UN 38.3, UL 1642 (Cells)
- Shipping classification: UN 3480
- EAN-13: 8718531360082
- Battery designation: 4IFpR27/66-10
