Andrena — Starter

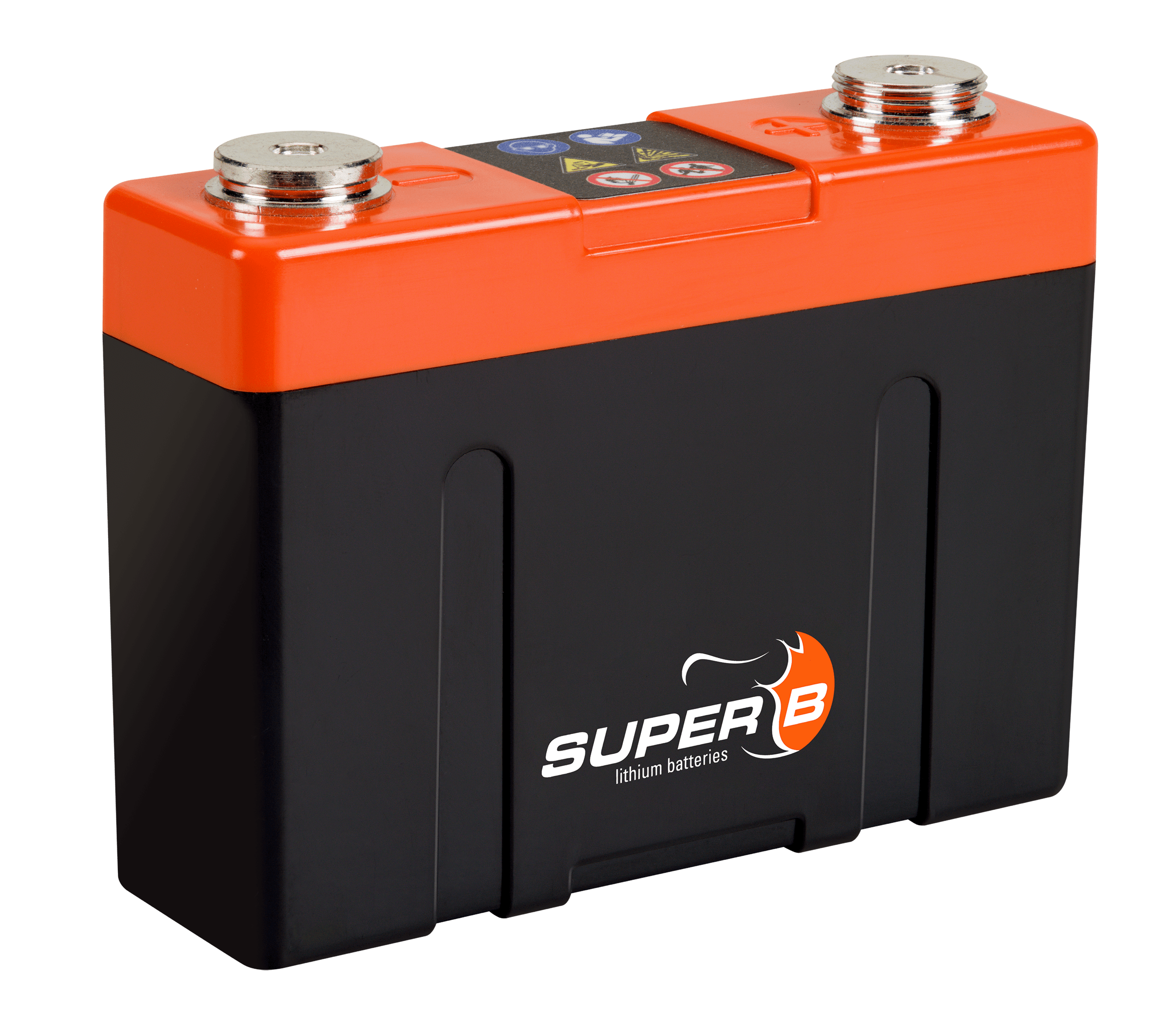

Andrena 12V2.5Ah — Ultralight LiFePO4 Starter
Lightweight, high-performance and reliable starter battery for motorsport applications. Equals a 5–7Ah lead-acid (when alternator current ≤ 10A). Built for 12V systems and extreme environments.
12.8V nominal
2.5Ah / 32Wh
>1000 cycles (10C, 100% DoD)
IP69
EqPb: 5–7Ah
Downloads
Gallery
Specifications
Electrical
- Nominal capacity: 2.5Ah
- Energy: 32 Wh
- Open circuit voltage: 13.2V
- Self-discharge: <3% per month
- Cycle life: >1000 (at 10C discharge, 100% DoD)
- EqPb (lead-acid equivalent): 5–7Ah
- Voltage: 12V
Charge & Discharge
- Charge method: CCCV
- Charge voltage: 14.3–14.6V
- Max charge current: 10A
- End of discharge voltage: 8V
- Continuous discharge current: 40A
- Pulse discharge current: 136A (1s)
Mechanical
- Dimensions (L×W×H): 114 × 32 × 84 mm (4.49” × 1.26” × 3.30”)
- Weight: 0.46 kg (1.0 lbs)
- Case material: PC/ABS
- Ingress protection: IP69
- Cell type / chemistry: Cylindrical — LiFePO4
Temperature
- Charge: 0°C to 55°C (32°F to 131°F)
- Discharge: −30°C to 55°C (−22°F to 131°F)
- Storage: −40°C to 60°C (−40°F to 140°F)
Compliance & General
- Certifications: CE, UN 38.3, UL 1642 (Cells)
- Shipping classification: UN 3480
- EAN-13: 8718531360006
- Battery designation: 4IFpR27/66
