Simarine Pico Super B Edition Set

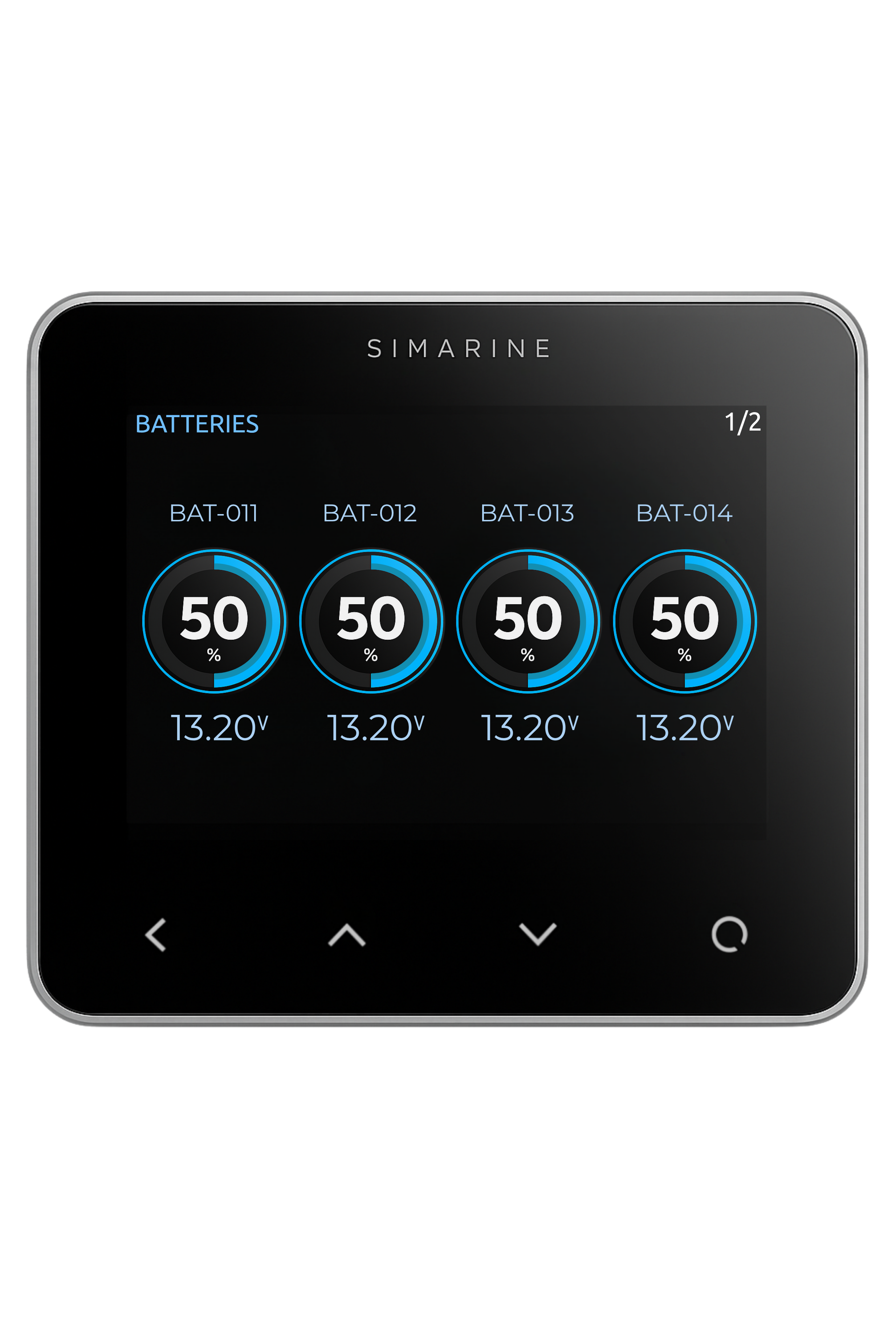

The Simarine PICO Display × Super B is a premium battery monitor for campervans, motorhomes, and boats. It features native Super B firmware, plug-and-play SG01 compatibility, and real-time insights into battery health, tank levels, and temperature. With support for multiple batteries, custom alerts, and a rugged, waterproof design, it offers full control—on the road or at sea.
Available in:
• Panel mount (black or silver)
• Stand alone (black
or silver)
Comparison
Specifications
| Power source voltage range | 6 – 35 V | Operating temperature | -20 °C to +70 °C |
| Power consumption (Wi-Fi 100%) | 90 mA @ 12 V | Power consumption (Wi-Fi 70%) | 35 mA @ 12 V |
| Power consumption (Wi-Fi 0%) | 18 mA @ 12 V | Power Off (logger active) | 5 mA |
| Voltage measurement range | 0 – 75 VDC | Current measurement range | ± 999.99 A |
| Display resolution (voltage) | ± 0.001 V | Display resolution (current) | ± 0.01 Ah |
| Dimensions (Panel Mount) | 108.5 × 94 × 10 mm | Dimensions (Standalone) | 97.5 × 83 × 10 mm |
| Material | Anodized aluminum | Ingress protection | Front/Back: IP67, Gateway: IP44 |
| Relay contact rating | 0.5 A @ 125 V AC / 1 A @ 30 V DC | Max. switching power | 62.5 W AC / 30 W DC |
