Gobius c
It measures all kinds of fluids, including petrol, diesel and oil.
Gobius C for NMEA 2000, stepless measurement, 0-100%, version 3.0

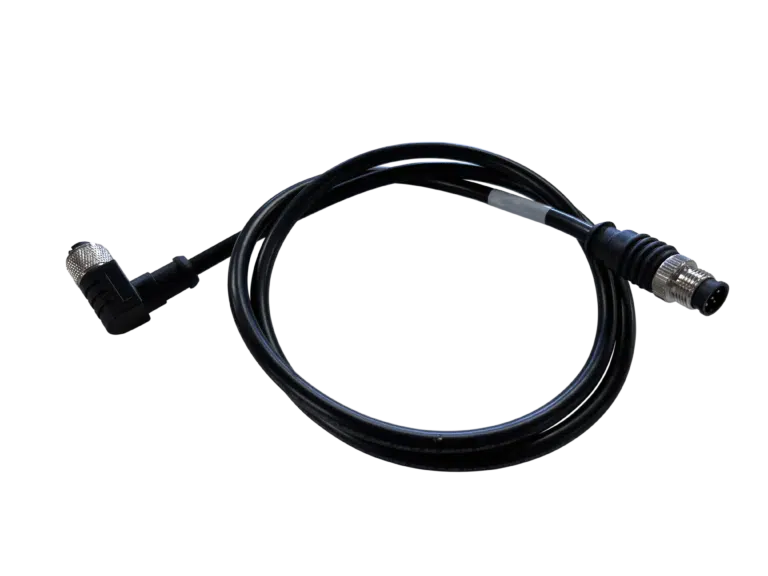

Plug and play installation. No disassembly of the tank is needed. Measures from the top, never risk of leakage. Complete system, everything included; sensor, NMEA 2000 cable, 3M cleaning wipe and an extra 3M sensor tape. Voltage 12 Volts. The sensor is mounted in the same simple way as other Gobius products, but on the top of the tank. Max. tank depth is 2 meters. Can be connected direct to a NMEA 2000 networks. Bluetooth connection for installation and also for displaying tank levels. The app is available in 10 languages.
Contact Sales →General information
- Suitable for all types of fluids
- Plug and play installation
- All settings are done automatically
- Built-in Tank Calculator
- Built-in sea wave motion reduction
- No need for removing the tank
- Reading through plastic tank
- No tank wall thickness limit (plastic)
- Adapted for standard holes in metal tanks 1 1/4″
- No cleaning inside the tank is needed
- No maintenance
Measurement functions
- Measuring range, 20-2000 mm
- Tank depth: Max 2 meters (78 inches)
- Tank depth: Min 0,2 meters (7,8 inches)
- Measuring interval, 1 second
- Resolution: 1 mm
- Accuracy: +/- 2-3 mm
Measurement functions
- Rectangular
- Irregular
- Vertical circular
- Horizontal circula
Technical description
- Input voltage, 9-12 V DC
- NMEA 2000 plug
- Sensor LED, shows active/measuring
- Power consumption, 10 mA
- Built-in Bluetooth, version 5.0
- Built-in temperature sensor
- Built-in accelerometer
- Built-in micro radar sensor
- Max voltage: 29 V
- Max current: 500 mA
- Bluetooth turn on/off

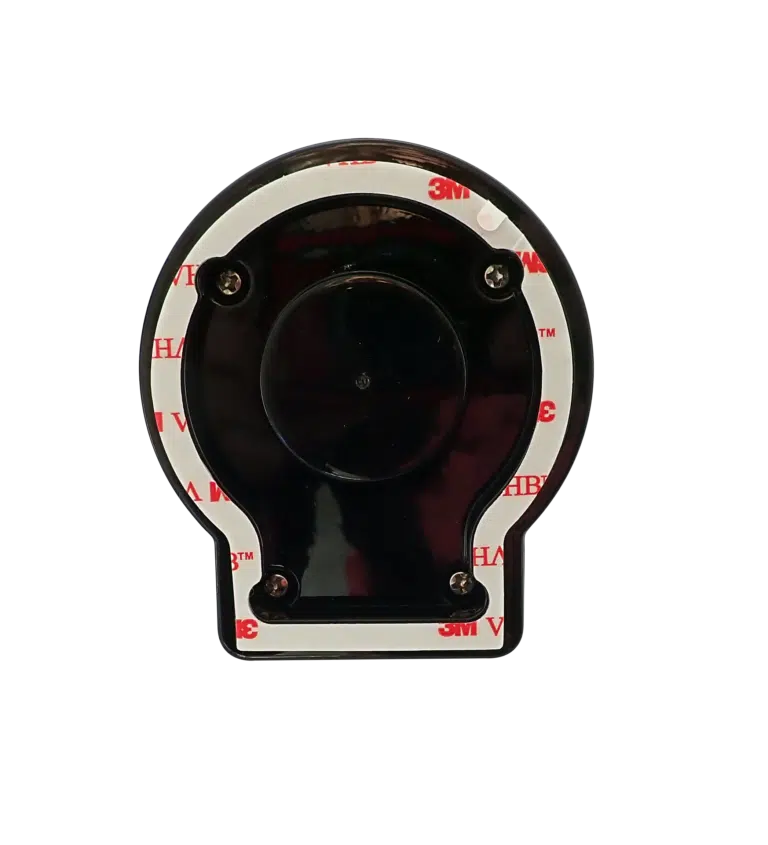

Sensor Facts
- Weight, 65 gram
- Dimensions, high 65 mm, width 95 mm
- Sensor height incl adapter metal tank, 75 mm
- Cable length, 1 m
- Connector on the sensor
- Sensor material, ABS
- Color, black
- Bluetooth, version 5.0
- Water proof (IP 56)
Software
- App for iOS and Android phones
-
Multi-language support, Chinese, Danish,
English, Finnish, French, German, Italian, Norwegian, Spanish, and Swedish - Installation / change / removal
- Correct level calculation, incl % and liters
- Bluetooth, version 5.0
- Turn on/off Bluetooth after 10 sec.
- Display level on the phone
- Built-in test functions
- Built-in supportfunction
Additional information
- Weight 0.6kg
- Dimensions 21 × 18 × 16 cm
